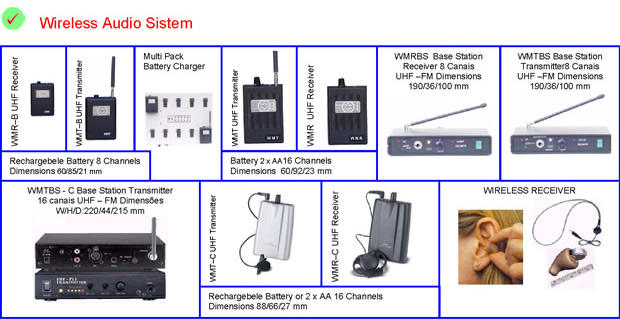

WMRBS
BASE
STATION RECEIVER
Receiving Frequency: 400 to 500 Mhz
Oscillator: PLL Synthesizer
Channels: 8 pré-programmed
Type of Reception: FM
Image Rejection: >70dB
Reference Deviation: +/- 75 KHz
T.H.D.: < 1%
Pre/De - Emphasis: 50 us
Frequency Response: 100Hz to 15 KHz
Audio Output Level: 0 to 300mV/1Kohms
Output Connector: 1/4 Monophone Jack
Operating Voltage: 12 VDC
Dimensions W/H/D: 190 /36/100 m/m
Weight: 200g
|
|
|
WMTBS
BASE STATION TRANSMITTER
Carrier Frequency: 400 to 500 Mhz
Oscillator: PLL Synthesizer
Channels: 8 pré-programmed
Type of Emission: FM
Antenna integral: W / Output cable
Input Connector: 1/4 Monophone Jack
Reference Deviation: +/-75Khz
Frequency Response: 100 Hz to 15 KHz
RF Output: 50 mW
spurious: < 60db
S/N Ratio: >110dB
Operating Voltage: 12 VDC
Dimensions
W/H/D: 190 /36/100 m/m
Weight: 200g
|
|
|
WMT
MICROPHONE BODY PACK TRANSMITTER
Carrier
Frequency: 400 to 500 Mhz
Oscillator: PLL Synthesizer
Channels: 8 pré-programmed
Type of Emission: FM
Antenna integral: W / Output cable
Input Connector: 3,5 mm Jack
Reference Deviation: +/-75Khz
Frequency Response: 100 Hz to 15 KHz
RF Output: 50 mW
spurious: < 60db
S/N Ratio: >110dB
Operating Voltage: 3V (2AA size)
Dimensions W/H/D: 60/92/23 mm
Weight: 100g |
|
|
WMR
BODY PACK RECEIVER
Receiving
Frequency: 400 to 500 Mhz
Oscillator: PLL Synthesizer
Channels: 8 pré-programmed
Type of Reception: FM
Image Rejection: >70dB
Reference Deviation: +/- 75 KHz
T.H.D.: < 1%
Pre Emphasis: 50 us
Frequency Response: 100Hz to 15 KHz
Audio Output: 0,2 W at 32 ohms
Output Connector: 3,5 mm Jack
Operating Voltage: 3V (2AA Type)
Dimensions W/H/D: 60/92/23 m/m
Weight: 100g |
|
|
|
MINIATURE
WIRELESS RECEIVER
Microcall
is a miniature inductor receiver, long-range cuing system providing
a performer with first quality auditory assistance. It is simple and
easy to use the prompters wears the WMT wireless microphone transmitter.
The performer wears the WMR companion receiver and neck-loop transdutor
that transmits the audio to the Microcall inductor receiver comfortably
concealed in the ear. Application: personal cuing, professional studio
communication and security agent. |
|
|
CONFERENCE
SPEAKERPHONE
The
fullduplex communication of Conference Speakerphone using the DSP
technology offers a communicative quality other than half-duplex communication
that interfering noise always exists, the advanced DSP algorithim
has the features of echo cancellation and suppression of environmental
noise it has Three built-in microphones offers a 360 degree of coverage
and it has the option to use two extension microphones. The RCA audio
jack supports a record, standard phone lines pabx system can be easily
fitted with this system. |
|
|
PERSONAL
WIRELESS PA SYSTEM
Receiving
Frequency:160 to 250 Mhz
Oscillator: Quartz Controlled
Type
of Reception: FM
Image Rejection: >70dB
Reference Deviation: +/- 15 KHz
T.H.D.: < 1%
Pre Emphasis: 50 us
Frequency Response: 100Hz to 15 KHz
Power Output: 20 W at 4 ohms
Speaker: Built in 5´´
Output Connector: 3,5 mm Jack
Input connector: Monophone Jack
Operating Voltage: 12V rechargeable battery
Dimensions W/H/D: 160/178/285 m/m
Weight: 2,95 Kgs |
|
|
MICROPHONE
BODY PACK TRANSMITTER
HANDHELD WIRELESS MICROPHONE
Carrier
Frequency:160 to 250 Mhz
Oscillator: Quartz Controlled
Type
of Emission: FM
Antenna Integral: Built in
Deviation: +/- 15 KHz
Frequency Response: 100Hz to 15 KHz
RF Output: 30mW
Spurious: <60dB
S/N Ratio: >110dB
Operating Voltage: 9 VDC
Dimensions W/H/D: 60/105/20 m/m
Weight: 100 g |
|
|
